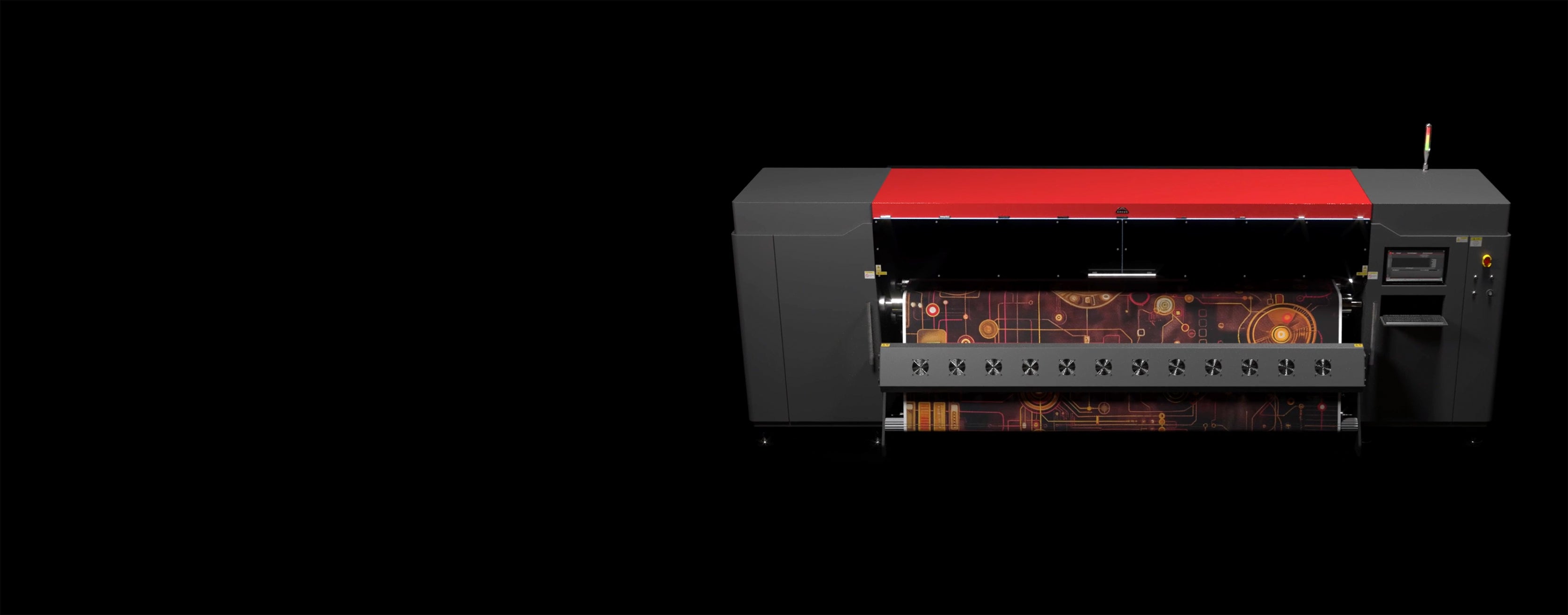

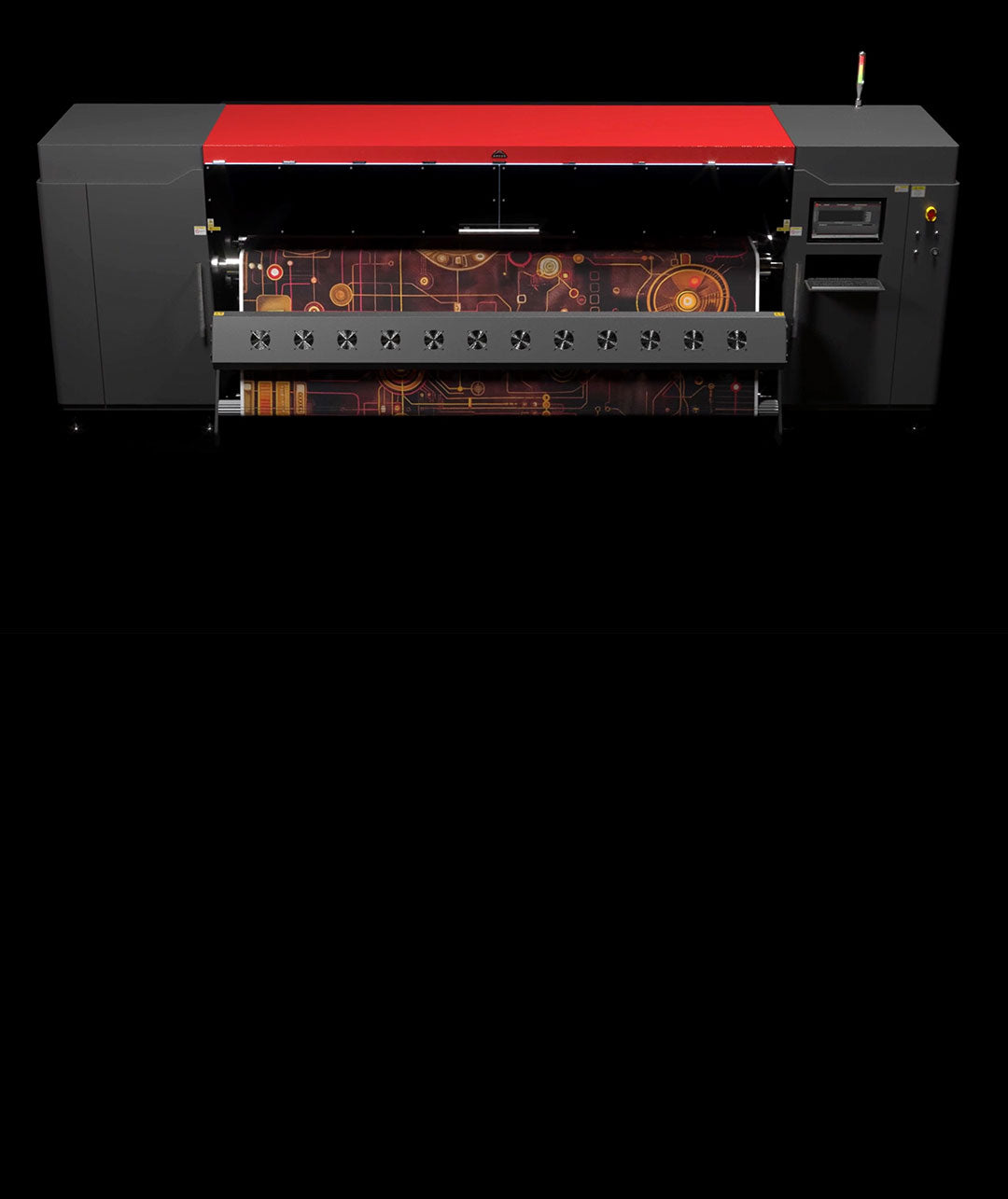

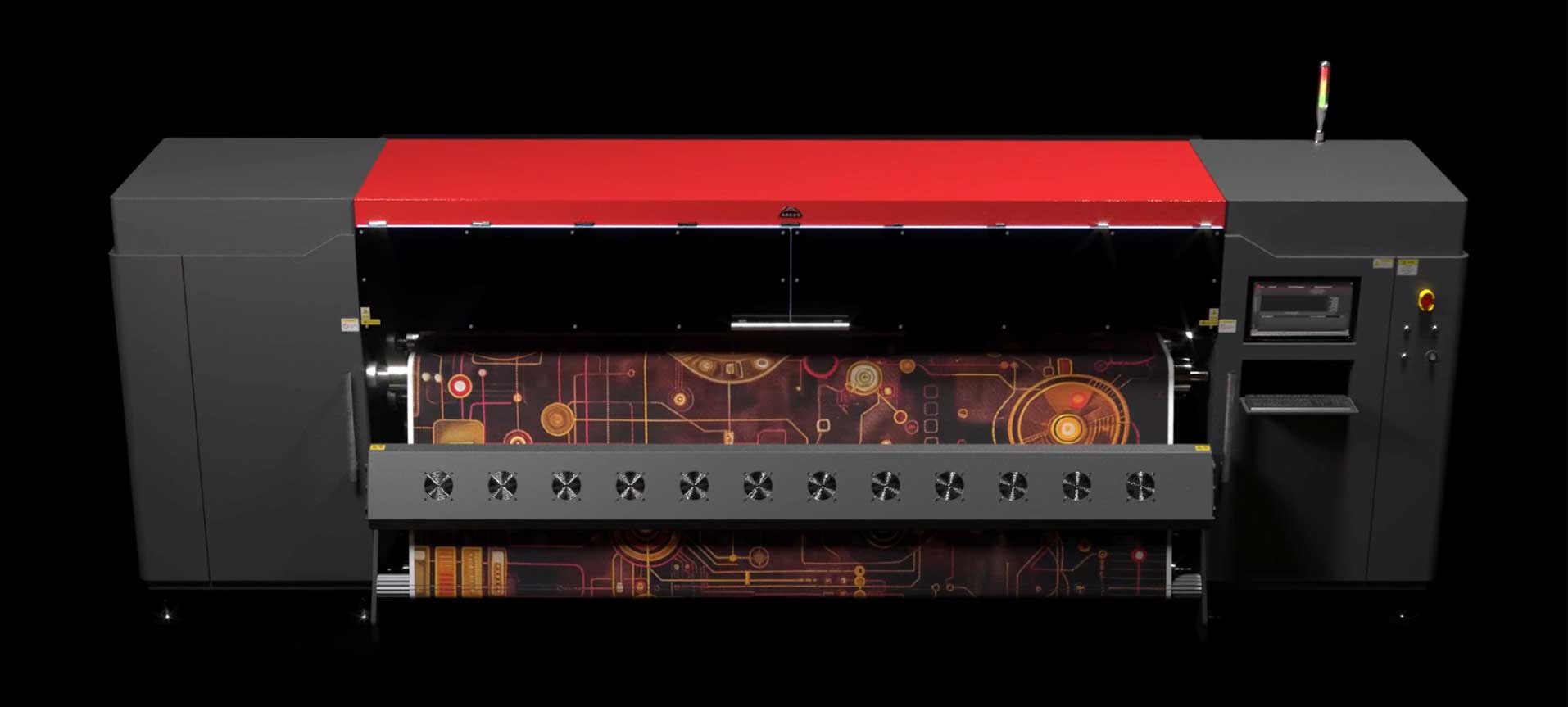

Meet the All-New 3216
Industrial-Grade Dye Sublimation at Unmatched Speed and Power
The Arcus 3216 Grand Format Dye Sublimation Printer is designed to set a new standard in high-volume production. With incredible speeds up to 5,737 sq.ft/hr and an industrial-grade heavy-duty media handling system, the 3216 empowers decorators to take on massive projects with outstanding color, consistency, and reliability.
Built with a robust frame, 16 Epson I3200 printheads, and advanced servo-driven tension control, the 3216 delivers exceptional print quality while managing master rolls up to 25 inches in diameter and 1 metric ton in weight.
Blazing Fast, Industrial-Grade Sublimation Printing
UP TO
5737
SQFT/HR SPEED
UP TO
3600
DPI RESOLUTION
Key Features
High-Speed, High-Resolution Performance

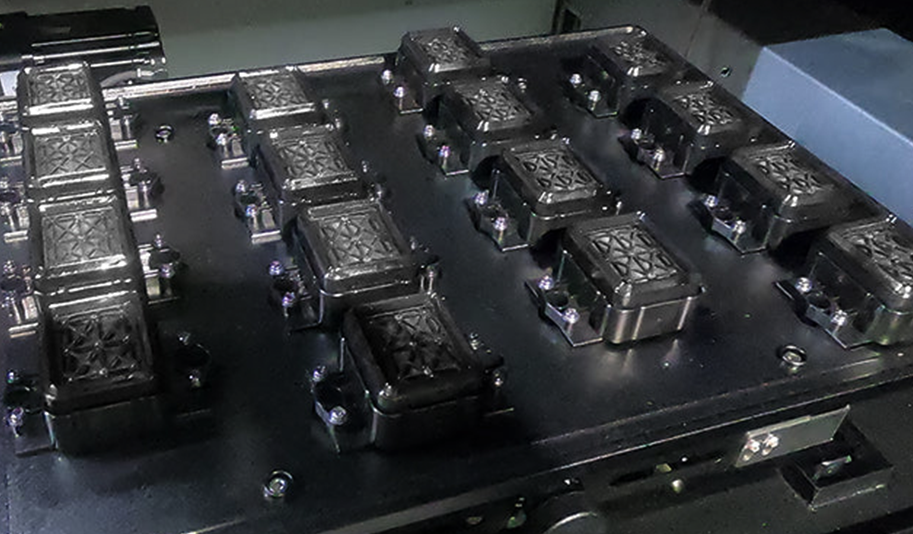

Equipped with 16 Epson I3200 printheads, the 3216 offers 10 different printing modes, ranging from 360 dpi to 3600 dpi. Produce vivid, color-accurate sublimation prints at lightning-fast speeds up to 5,737 sqft/hr.
Grand Format Printing for Massive Jobs
The 3216 accommodates sublimation transfer paper up to 3200mm (126") wide, making it ideal for large-scale signage, textiles, and soft signage production.
Industrial Media Handling System

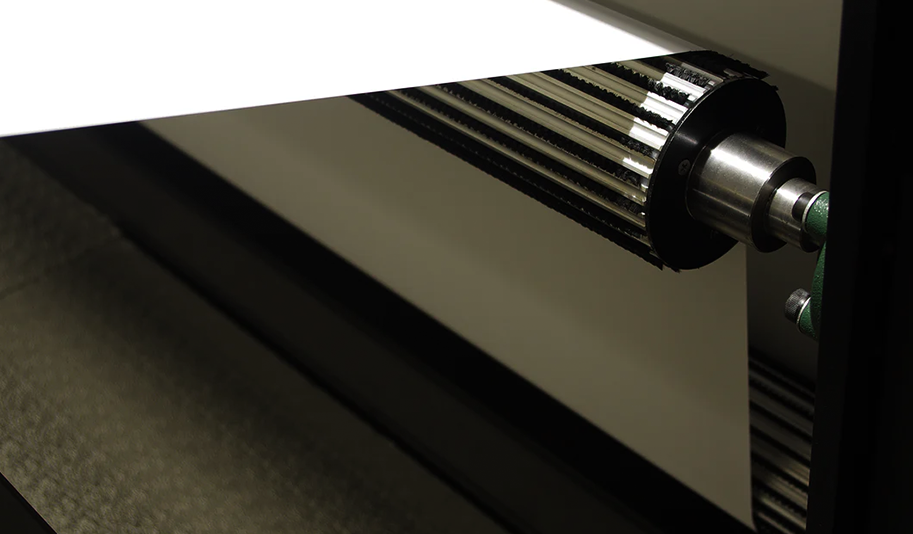

Handle master rolls like a pro! The 3216 supports media rolls up to 25.6" in diameter and weighing up to 1 metric ton, with dual-powered unwind/rewind and precise servo tension control to keep media feeding flawlessly.
Dual-Zone External Drying System

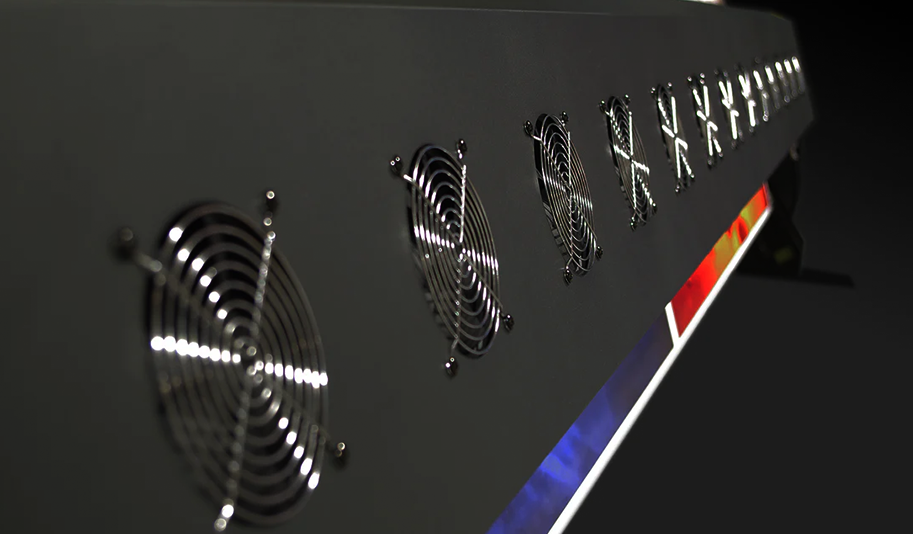

The 3216's powerful dual-zone infrared and fan-assisted drying ensure rapid ink set for immediate take-up, allowing for continuous and efficient production even at high speeds.
Built for Industrial Reliability

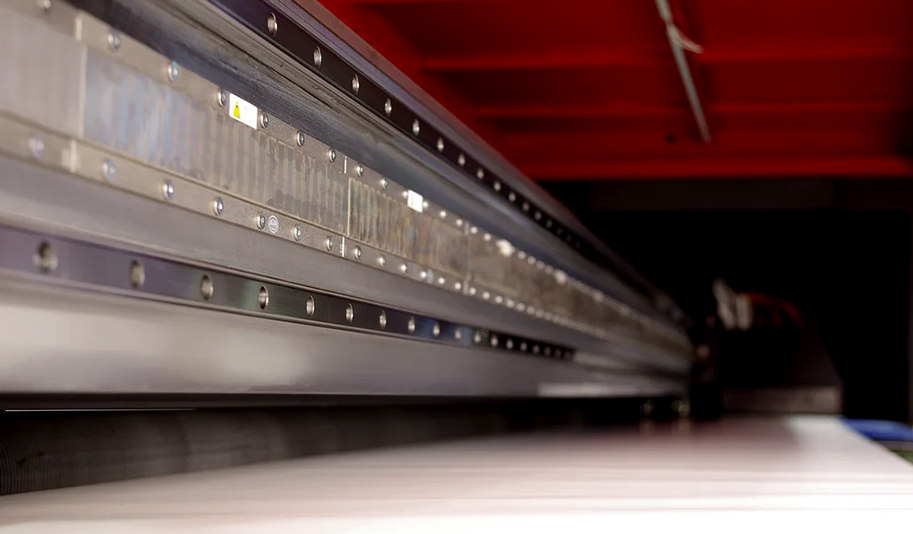

A heavy-duty linear motor carriage control system, automatic printhead cleaning, and a robust industrial frame ensure the 3216 withstands demanding production environments day after day
Turnkey Solution with
Software & Support
The 3216 comes production-ready with Ergosoft Production RIP Software, ArcusLink machine management, a heavy-duty media system, and USA-based technical support. An industry-leading 3-Year Limited Warranty gives you ultimate peace of mind.
Included With Your 3216
Industrial Heavy-Duty Media Handling System (Max 25" Diameter, 1 Metric Ton Max Weight)
Ergosoft Production RIP Software
ArcusLink Machine Control
Three-Year Limited Warranty
Comprehensive Training & Customer Support
SPECIFICATIONS
General
Printer Type:
Grand Format Dye Sublimation Printer
Model:
3216
Print Head Type:
Epson I3200 (16 Heads)
Ink Type:
Aqueous / Dispersed Dye
Ink Colors:
CMYK, White, Varnish
Ink Supply System:
Main Tank + Secondary Sub Tank + Tertiary Sub-Tank
Ink Capacity:
15L Per Color
Maximum Media Width:
3200mm (126 inches)
Media Type:
Sublimation Transfer Paper
Media Take-Up:
Dual-Powered Wind/Unwind with
Servo Tension Control
Supported Media Diameter:
65cm (25.6 inches)
Supported Media Weight:
1000kg (2204 lbs.)
Printing
Print Resolutions:
360 / 600 / 720 / 1200 / 1800 / 3600 dpi
Print Method:
Variable DOD
Print Speed:
- 1 Pass (Draft Mode): 5737 sqft/hr (533 sqm/hr)
- 2 Pass (Standard Mode): 3283 sqft/hr (305 sqm/hr)
- 4 Pass (Quality Mode): 2960 sqft/hr (275 sqm/hr)
Build & Hardware
Head Carriage Height:
1.5mm – 3.5mm
Carriage Control:
Linear Motor with Servo Controller
Head Cleaning System:
Automatic Lift and Auto-Clean
Screen Display:
Touch Screen Interface
Drying System
External Dryer:
Dual-Zone Infrared with Fan Control
Dryer Power Consumption:
- Front: 4.8KW @ 220V
- Bottom: 14.4KW @ 380V
Software & Compatibility
RIP Software:
Ergosoft Production RIP / ArcusLink
Operating System Compatibility:
Windows 8 / 10 / 11
Data Interface:
1000M LAN / USB 3.0
Dimensions & Power
Machine Weight:
2700kg (5952 lbs.)
Printer Operating Voltage:
380V
Printer Power Consumption:
25KW
Operating Environment
Temperature:
18°C–30°C (65°F–86°F)
Humidity:
40%–60%
Print Speed
1 Pass (Draft):
5737 sqft/hr
2 Pass (Standard):
3283 sqft/hr
4 Pass (Quality):
2960 sqft/hr
