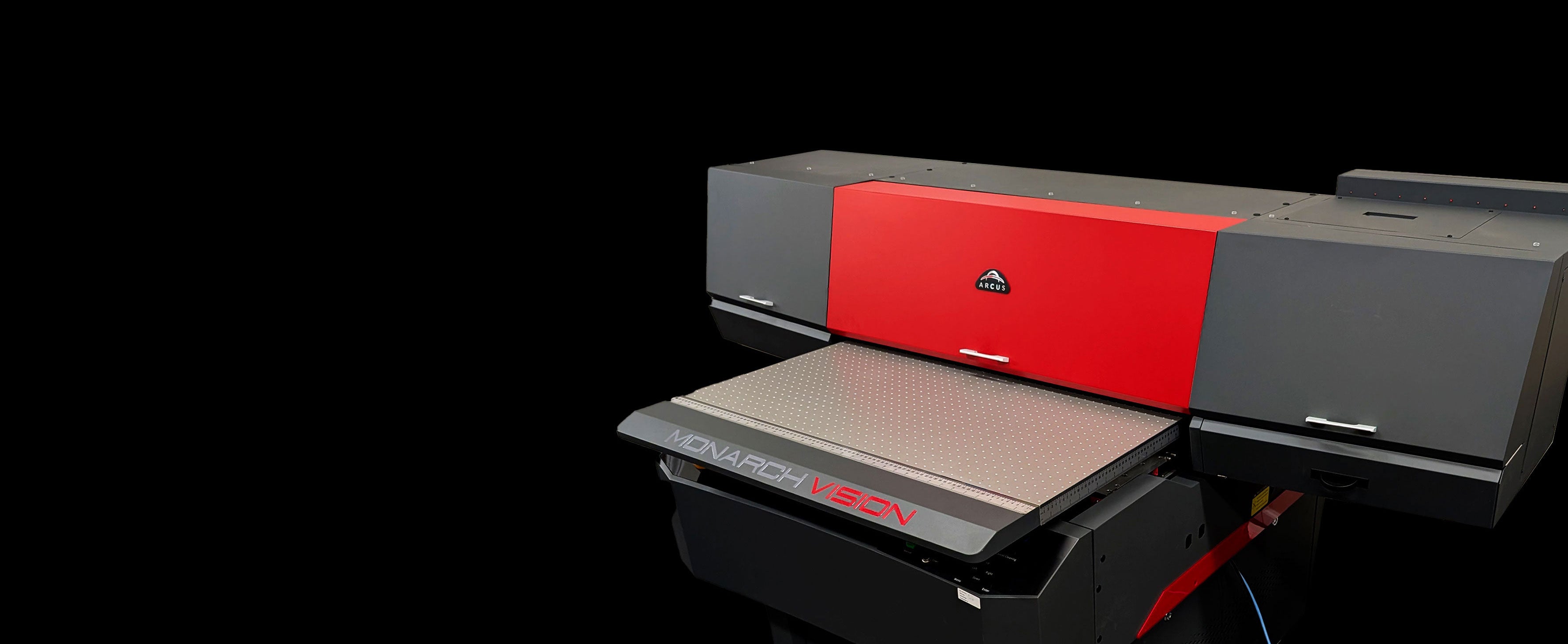

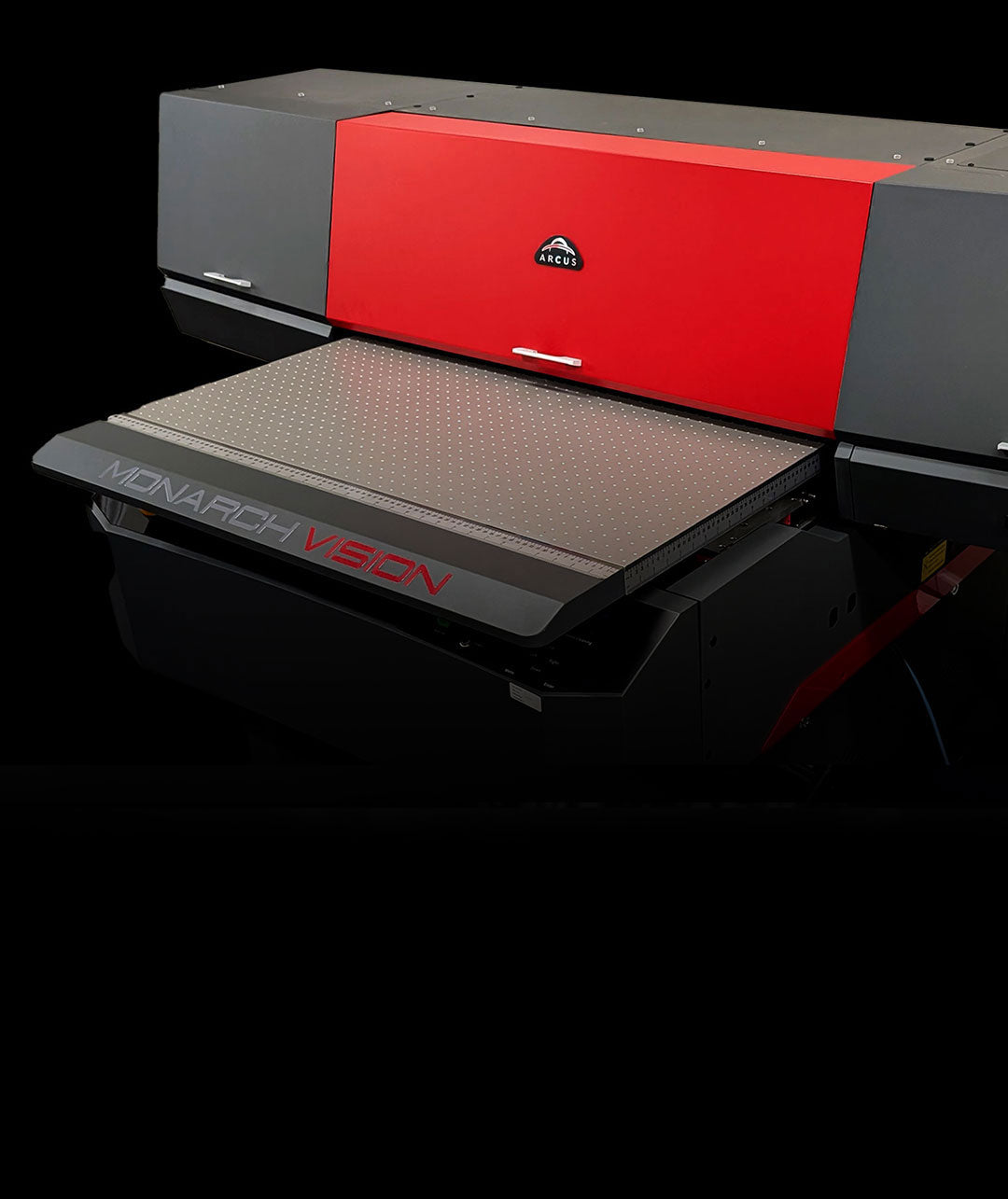

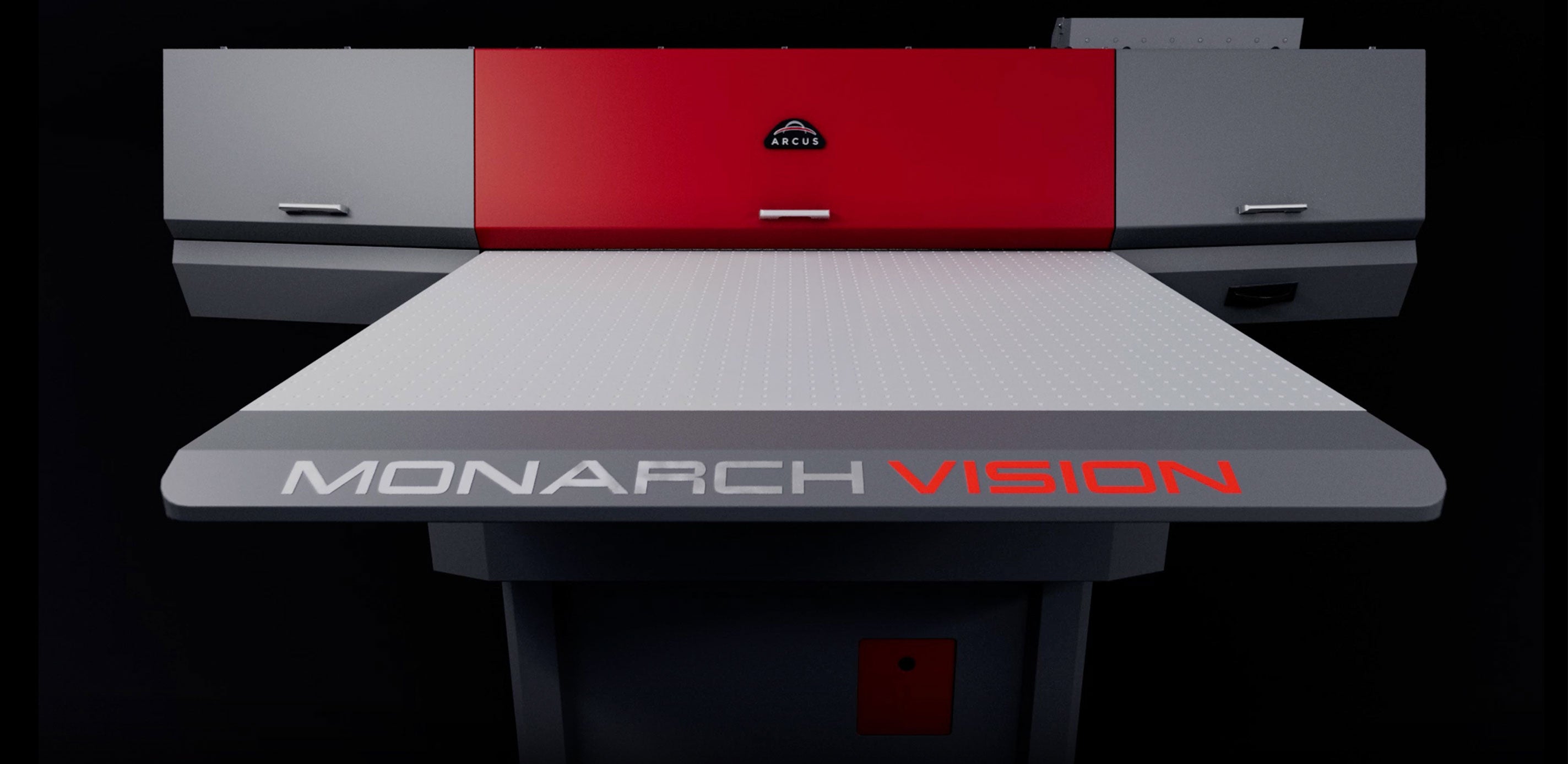

Introducing the all new Monarch FB2436 Vision
The Next-generation UV Flatbed Printer
The Monarch FB2436 Vision features an innovative camera vision system that eliminates the need for jigs or manual registration, enabling precise, dynamic print adjustments on irregularly placed objects.
With a robust industrial build that Arcus Printers is known for, high-speed output, and advanced UV layering for 3D and haptic printing effects, the FB2436 Vision is a game-changer for decorators seeking superior efficiency, precision, and versatility.
High-Speed, High-Resolution, Precision Printing
UP TO
108 sqft/hr
SPEED
UP TO
720 X 1800
DPI RESOLUTION
Key Features

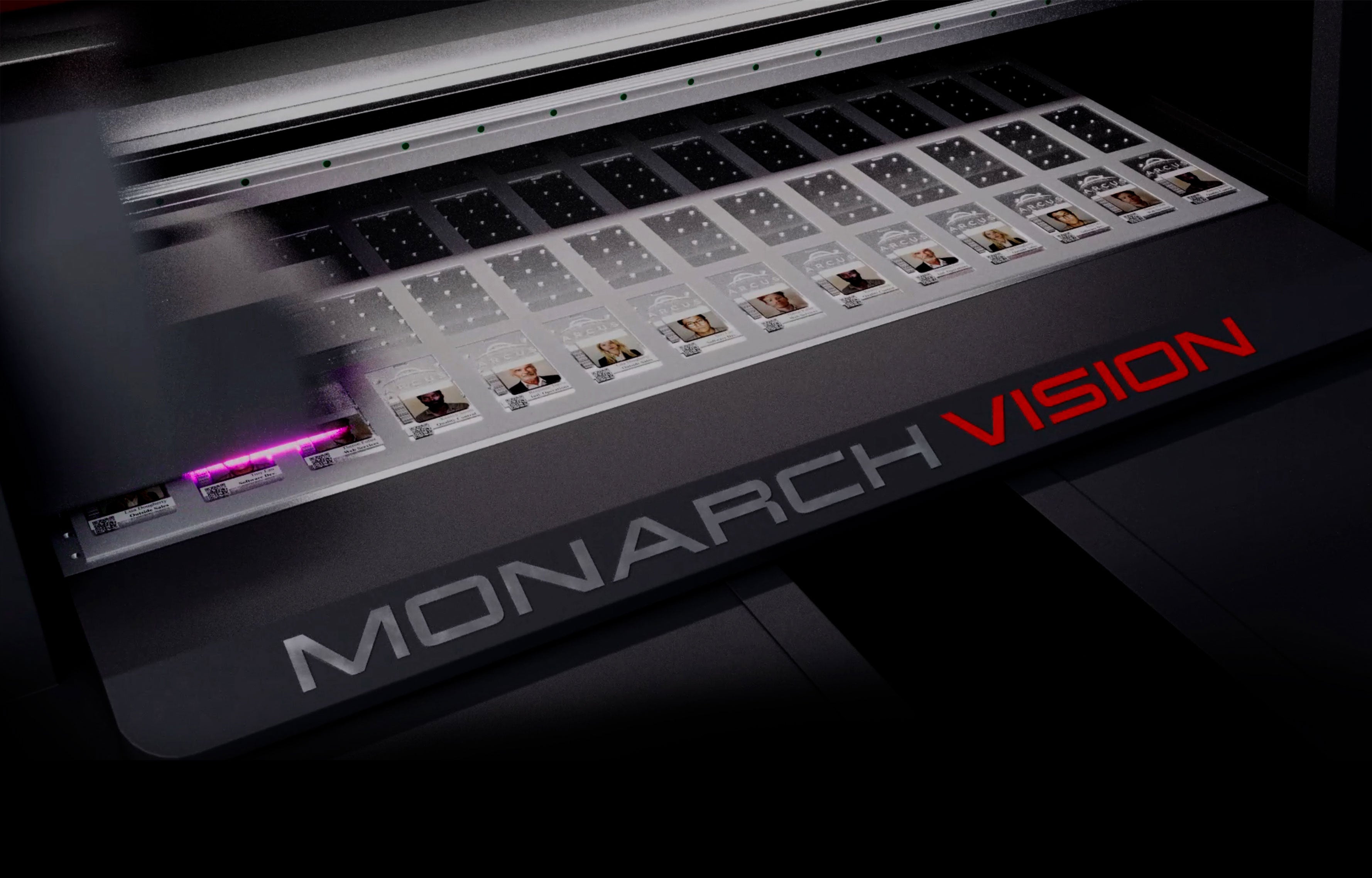

Vision-Based Precision
The advanced camera vision system detects object placement automatically, eliminating the need for jigs and manual alignment — allowing you to print with unmatched precision and speed.
Large Print Area and
Versatile Media Compatibility
With a 35.5" x 23.5" flatbed and 5.9” print height, the FB2436 Vision accommodates a wide range of materials, including glass, acrylic, metal, wood, ceramic tiles, PVC, leather, and even flexible films.
Industry-Leading Print
Speed and Detail
The Monarch FB2436 Vision prints at 108 sqft/hr in 4-Pass Production Mode (720x1800 dpi), maximizing efficiency. The 3-printhead I3200U1 system delivers precise 3PL drop sizes for exceptional color accuracy and sharp details.
3D Effects, Haptic Textures
and UV-DTF Printing
Advanced UV layering creates gloss, matte, textured, and doming effects for premium finishes. The UV-DTF capability enables transfers to curved and irregular surfaces—no weeding required.
Built for Industrial Reliability

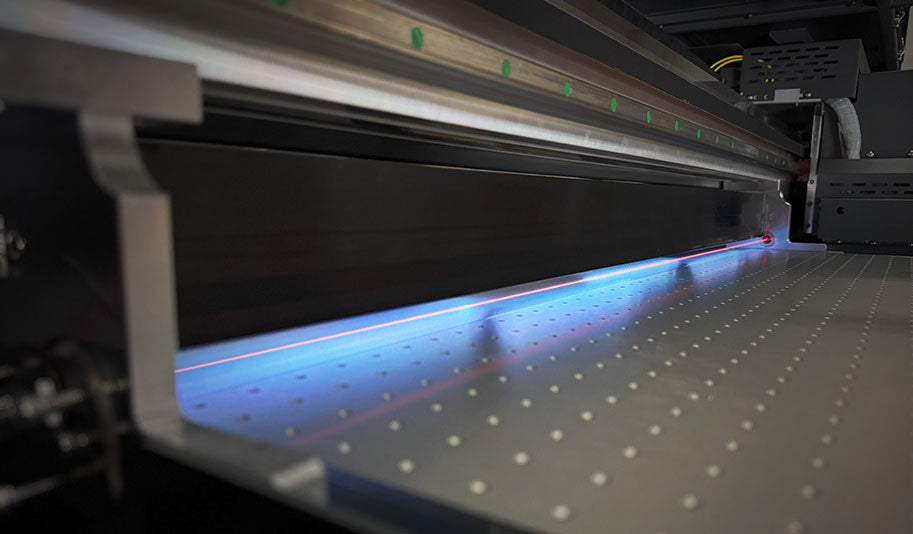

Servo-driven motors and a precision lead screw system ensure long-term durability. Automatic height sensing and infrared beam detection prevent head strikes while optimizing quality. A high-power, water-cooled UV curing system guarantees consistent, reliable prints.
Turnkey Solution with
Software & Support
The pre-configured ArcusLink software provides remote diagnostics and machine control. Multi-RIP compatibility (Cadlink Digital Factory V11) ensures seamless workflow integration. Training and customer support are included, so you're production-ready from day one.
Included With Your Monarch FB2436 Vision
Cadlnk Digital Factory V11 RIP Software:
Professional-grade software for precise color control and seamless printing workflow.
ArcusLink Machine Control Software:
Advanced diagnostics and remote support ensure minimal downtime.
All-in-One Production PC:
Pre-configured with software and optimized for print production.
Comprehensive Training & Customer Support:
World-class training to help you confidently operate your equipment, plus expert technicians available nationwide.
1-Year Warranty:
Ensuring reliability and peace of mind.
SPECIFICATIONS
General
Printer Type:
UV Flatbed Printer with Arcus Vision
Model:
Monarch FB2436 Vision
Print Head Type:
Epson I3200U1
Number of Print Heads:
3
Ink Type:
Environmentally Friendly UV Ink with Vibrant
Colors and High Outdoor Durability
Ink Colors:
C / M / Y / K / White / Varnish
Ink Technology:
Piezoelectric Variable Dot Inkjet
Ink Capacity:
.5L CMYK , 1L W, V
Printing Area:
90cm x 60cm (35.5” x 23.5”)
Max Print Height:
5.9”
Camera Scanning Width:
85cm x 57cm
Printing
Supported Printing Modes:
- White + Color
- White + Color + Varnish
- One White + Two Colors
Printing Speed:
- 4PASS (Production Mode): 108 sqft/hr
- 6PASS (Precision Mode): 63 sqft/hr
UV Layering:
Supports haptic textures, matte/gloss finishes, and doming effects
Supported Media
Rigid Media:
Glass, acrylic, metal, wood, ceramic tiles, aluminum plates, PVC boards, signage, and more
Flexible Media:
Canvas, wallpapers, leather, carpets, reflective films, and paper
File Format Support:
TIFF, JPEG, Postscript, EPS, PDF
Color Configuration:
6 Colors (C+M+Y+K+W+Varnish)
Build & Hardware

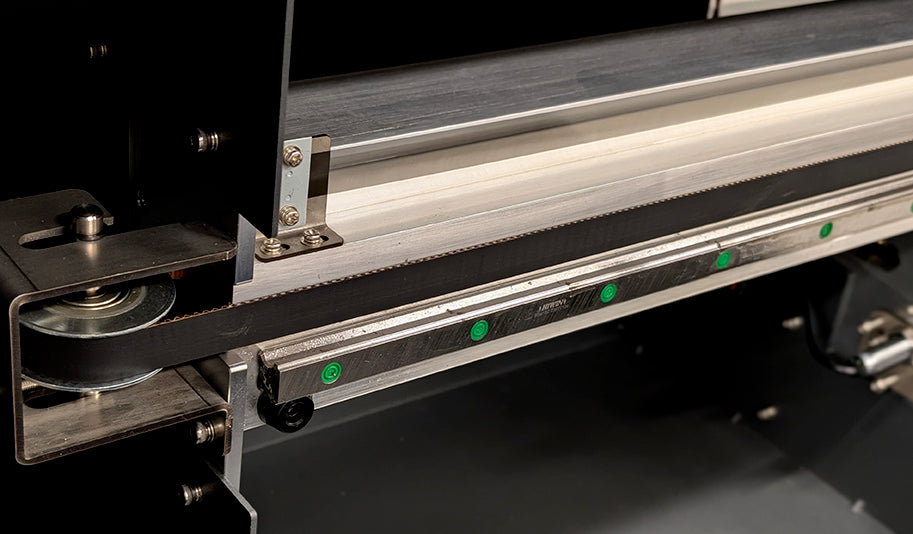

Industrial Guide Rails:
HIWIN Silent Guide Rails

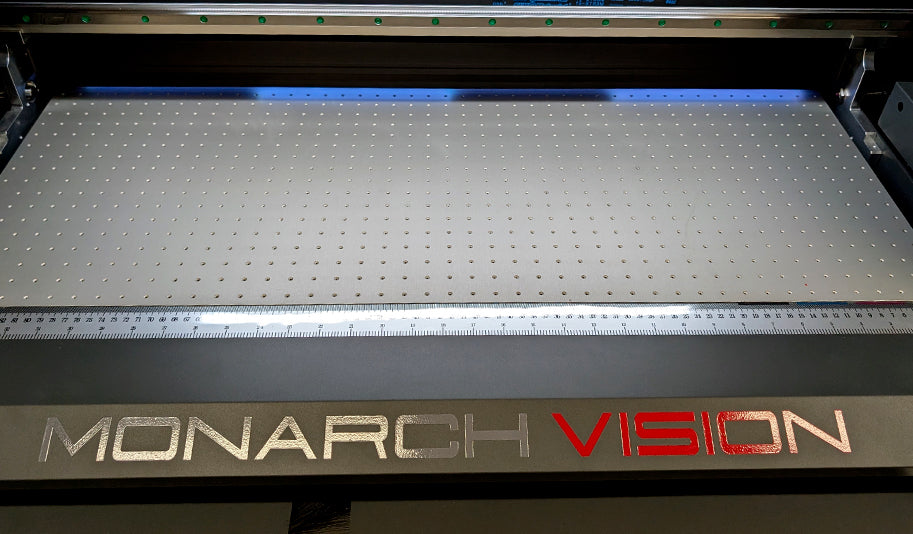

Print Platform:
High-Precision Vacuum Adsorption Honeycomb Aluminum Platform
Motion System
X-Axis:
180W Leadshine Servo Motor
Y-Axis:
Leadshine 57 Step Motor

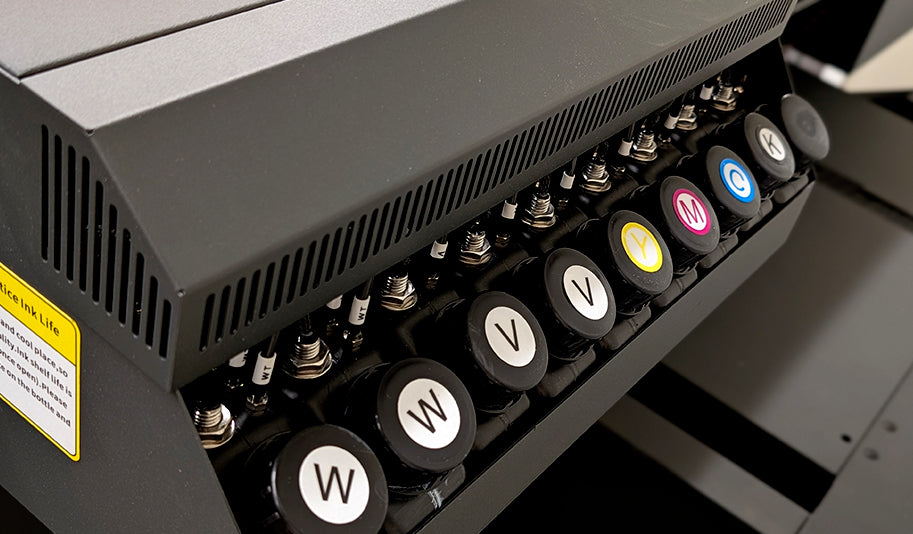

Ink System
Large-Capacity Ink Supply
Integrated Aluminum Ink Stack with Lifting Function
Ink Level & Low Ink Warning System
Curing & Vacuum System
UV Curing System:
850W High-Power Water-Cooled UV Lamp Tank
Vacuum System:
400W High-Power Suction Blower
Software & Compatibility
RIP Software:
Cadlink Digital Factory / SAI Flex
Color Control:
ICC Color Management System with adjustable curves and density
Machine Control Software:
ArcusLink (remote diagnostics and service)
Dimensions & Power
Equipment Size:
1440mm (L) x 2030mm (W) x 1300mm (H)
Packaging Size:
2200mm (L) x 1530mm (W) x 1000mm (H)
Weight:
350KG
Operating Voltage:
AC220V
Power Consumption:
2000W
Operating Environment
Temperature:
20–30℃
Humidity:
40%–60%
Print Speed
4PASS (Production Mode):
108 sqft/hr
6PASS (Precision Mode):
63 sqft/hr
