Pioneer 24 4-Head
Meet the Pioneer 24 4-Head
Meet the Pioneer
24 4-Head
High-Performance DTF Printing for High-Volume Production
The Arcus Pioneer 24 4-Head Direct-to-Film Printer is built for decorators who need serious production power. With blazing speeds up to 220 sq.ft/hr and a durable industrial frame, it delivers outstanding print quality, reliability, and efficiency across a wide range of materials.
This machine, equipped with four Epson I3200 printheads and designed for smooth media handling, empowers shops to take on larger orders with ease. Get ready to produce vibrant, detailed transfers on cotton, polyester, denim, leather, and more.
Powerful DTF Printing Designed for High-Demand Workflows
Powerful DTF Printing Designed for
High-Demand Workflows
UP TO
220
SQ. FT/HR SPEED
UP TO
2400
DPI RESOLUTION
Key Features

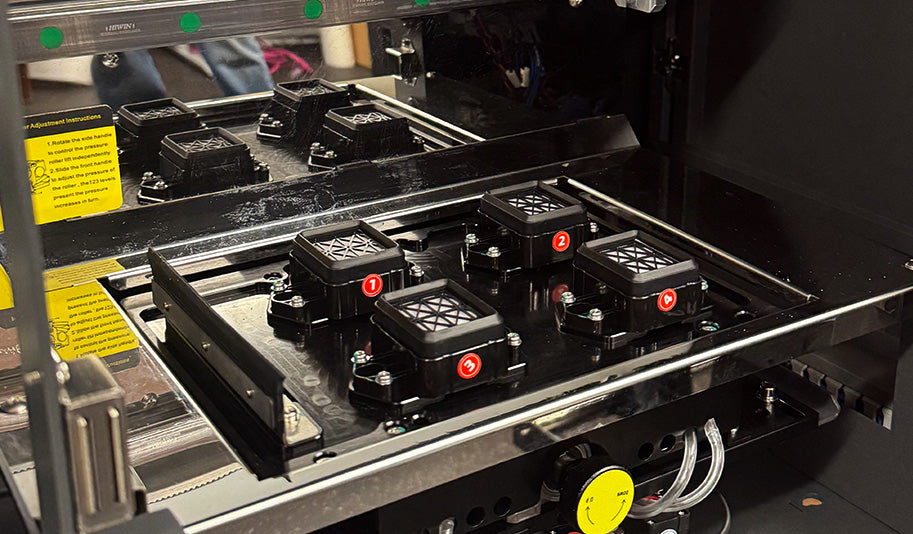

High-Output 4-Head Configuration
We built the Pioneer 24 4-Head for high-demand operations, with four Epson I3200 printheads for faster production speeds without sacrificing quality, reaching up to 220 sq. ft/hr in production mode.
24" Wide-Format Capability
The 24-inch media width makes it easy to tackle larger transfer jobs, giving you the flexibility to produce a wide variety of custom apparel, accessories, and soft goods.
Exceptional Resolution and Vibrant Color
Print stunning, high-detail images at up to 2400 dpi resolution, delivering smooth gradients, vivid color, and excellent durability across a wide range of substrates.
Reliable Printing Across Multiple Materials
Designed to perform on cotton, polyester, denim, leather, canvas, and more, the Pioneer 24 4-Head offers the versatility you need to expand your product offerings.
Industrial-Grade Build for Continuous Production
Engineered for durability and performance, the Pioneer 24 4-Head features a robust industrial frame that minimizes downtime, ensures long-term reliability, and keeps your cost per print low.

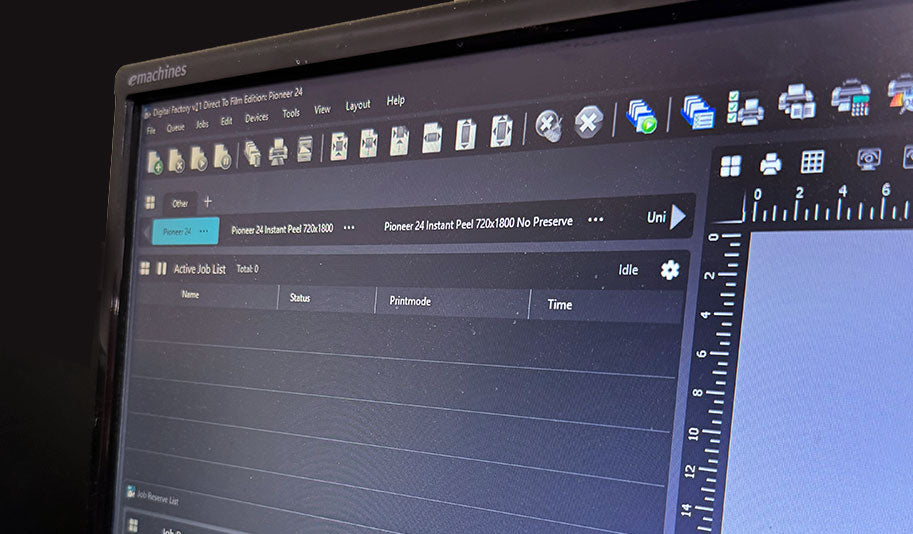

Complete System With Software and Support
Every Pioneer 24 4-Head includes Fiery RIP software for Arcus DTF Printers V12, an all-in-one production PC, top-tier training, and nationwide customer support to keep your operation running strong.
Included With Your Pioneer 24
Included With Your
Pioneer 24
Fiery RIP software for Arcus DTF Printers V12
Training and Customer Support
1 Year Warranty
All-in-one production PC
SPECIFICATIONS
General
Printer Type:
DTF Printer
Model:
Arcus Pioneer 24 4-Head
Print Head Type:
Epson I3200
Number of Print Heads:
4
Print Resolution:
720 / 1800 / 2400 dpi
Print Method:
Variable DOD
Ink Type:
Pigment Ink
Ink Colors:
C / M / Y / K / White
Ink Supply:
Main Supply Tank with White Stirring and Recirculation
Ink Capacity:
1000 mL/Bottle
Media
Max Media Width:
600mm / 24 inches
Media Type:
DTF Film
Media Unwind:
Auto Tensioning with Power Unwind
Media Take-up:
Sensor-Driven Rewind or Rubber Drive Roller
Build & Hardware
Head Cleaning / Capping:
Automatic Lift / Auto-Clean
In-Line Heater:
Pre / Print / Post Heating
Screen Display:
LED
Air Purifier:
Included
Software & Compatibility
RIP Software:
Fiery RIP software for Arcus DTF Printers V12
Supported OS:
Windows 8 / 10 / 11
Machine Control Software:
ArcusLink (remote diagnostics and service)
Power
Printer Voltage:
AC 208V–220V 50Hz / 60Hz
Printer Power Amperage:
16A (110V)
Shaker/Dryer Voltage:
AC 208V–220V 50Hz / 60Hz
Shaker/Dryer Amperage:
20.5A (220V)
Operating Environment
Temperature:
15°C–30°C (60°F–90°F)
Humidity:
40%–60%
Print Speed
6PASS (Production Mode):
220 sq. ft/hr
