Arcus Monarch FB4896 Vision
UV Flatbed
Printer System
Introducing the Monarch FB4896 Vision UV Flatbed Printer System
The Innovative Solution for Oversized, High-Impact UV Printing
The Monarch FB4896 Vision UV Flatbed Printer System is built for print shops that require industrial performance and flexibility at scale. With a massive 48" x 96" printable area, this system empowers decorators to print on oversized substrates with precision and speed, ideal for signage, specialty items, promotional products, and more.
Powered by eight advanced Epson I3200-U printheads (4 color + 4 white), the Monarch delivers high-fidelity output with exceptional photo-quality detail. Features like multi-zoned vacuum tables, a 4" throat depth for thicker substrates, and UV layering capabilities for tactile 3D finishes give operators unlimited creative potential.
Equipped with an automated clearance system, robust servo motors, and optional Arcus Vision Scan technology for template-free printing, the Monarch FB4896 Vision combines power, reliability, and innovation. Supported by Arcus RIP UV software and designed with remote-control ArcusLink functionality, it’s the production-ready flatbed that takes your business to the next level.
High-Speed, High-Resolution, Precision Printing
UP TO
625 sqft/hr
SPEED
UP TO
720 X 2400
DPI RESOLUTION
Key Features

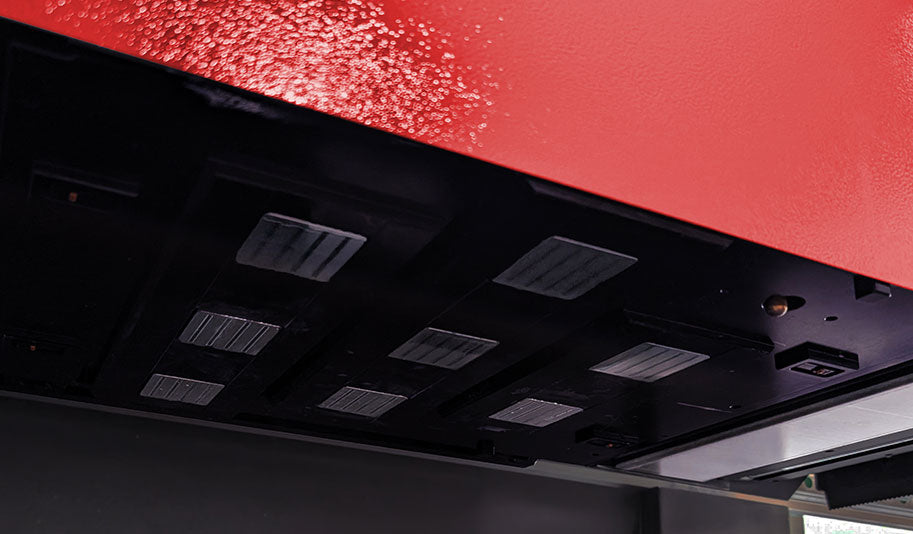

Industrial Epson I3200-U Printheads
Eight fixed I3200-U printheads (4 color + 4 white) deliver high-resolution output with droplet sizes as small as 2.5pl. This industrial printhead design ensures speed, durability, and photo-quality detail for demanding production environments.

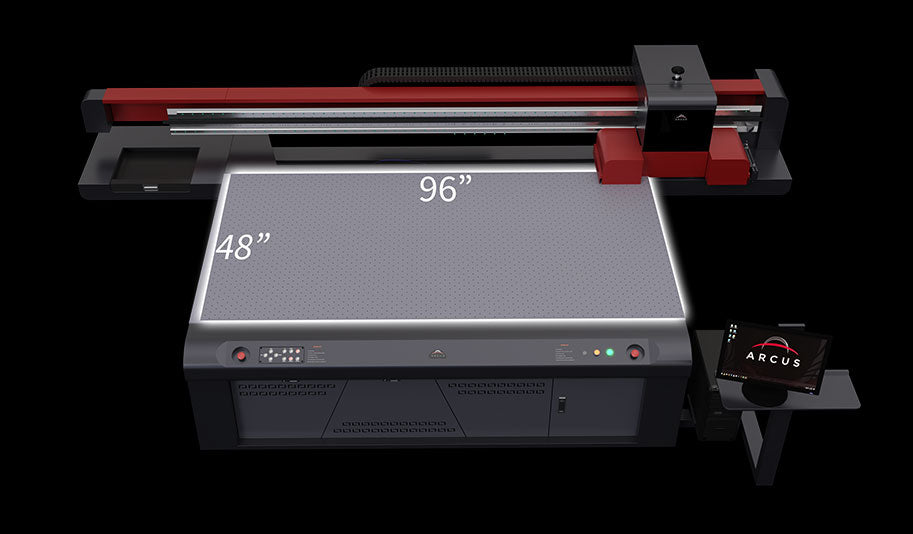

Oversized 48" x 96" Printable Area
A massive flatbed capacity supports full-size boards, large signage, and oversized substrates. Multi-zoned vacuum system ensures maximum vacuum strength, holding materials firmly in place for accurate registration and flawless imaging.
Advanced UV Layering and Haptic Printing
Create striking effects with multi-layered textures and raised 3D prints. Controlled ink height gives you more creative freedom and value-added applications.
White Ink Recirculation and Stirring
Continuous circulation prevents pigment from settling and nozzle blockages, keeping white ink flowing reliably. This feature also extends the life of your printhead for smooth, consistent coverage on every job.

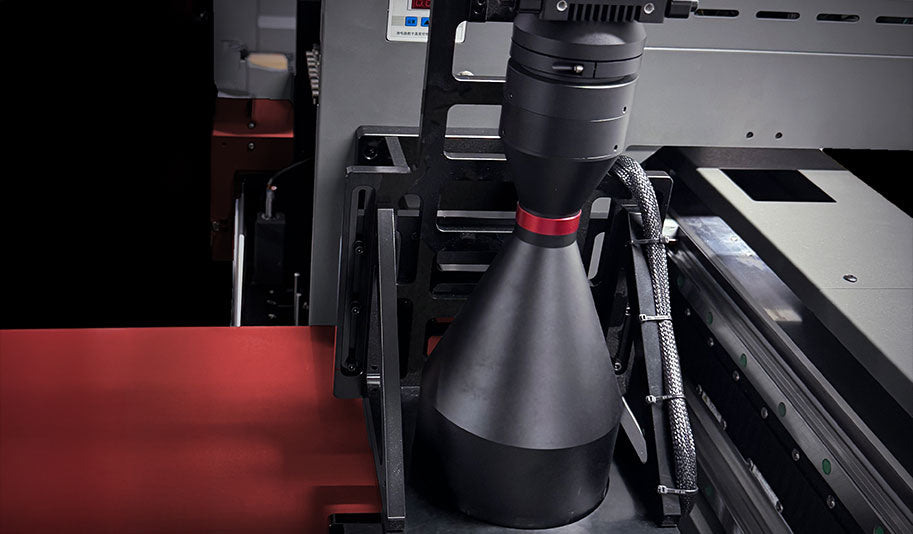

Vision Scan Camera System
Integrated vision technology scans substrate shapes and automatically aligns artwork for accurate placement. You can print multiple objects in random positions with speed and precision, without needing any templates or jigs.

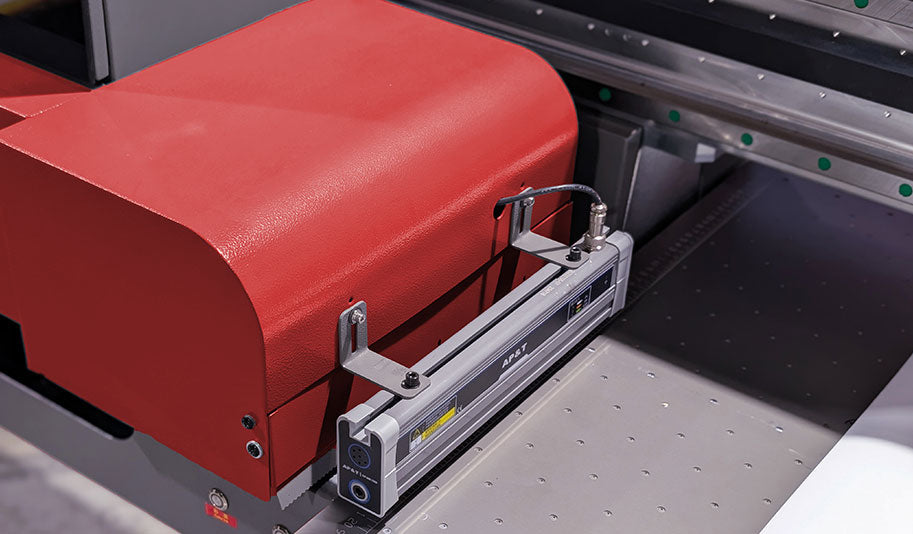

Anti-Static Bar
Integrated anti-static control reduces surface charge, for accurate ink placement and preventing droplet deflection for consistently clean prints.
Included With Your Monarch FB4896 Vision UV Flatbed Printer
Arcus RIP UV Software
ArcusLink Machine Control Interface
Onboard Integrated Chiller System
Built-In Environmental and Safety Features
Comprehensive Training and Customer Support
1-Year Warranty
SPECIFICATIONS
General
Printer Type:
UV Flatbed Printer With Integrated Vision Scan System
Model:
Monarch FB4896 Vision
Print Head Type:
Epson I3200-U1
Number of Print Heads:
8 (4 CMYK + 4 White)
Ink Type:
UV Curable Ink
Ink Colors:
CMYK + White
Ink Technology:
Piezoelectric Variable Dot Inkjet, droplet size down to 2.5pl
Ink Capacity:

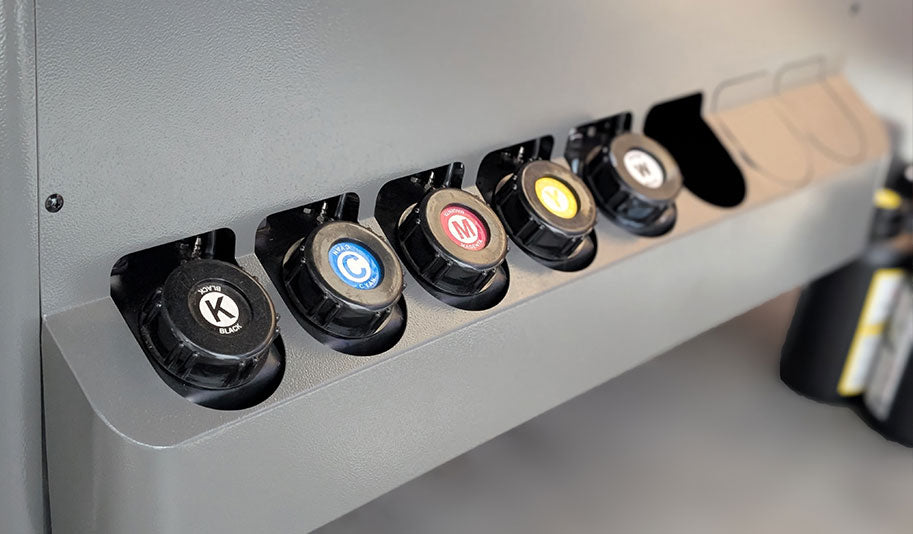

1L onboard bulk tanks with a subtank feed system
Max Media Size:
48" × 96" (1219 × 2438 mm)
Max Media Height:

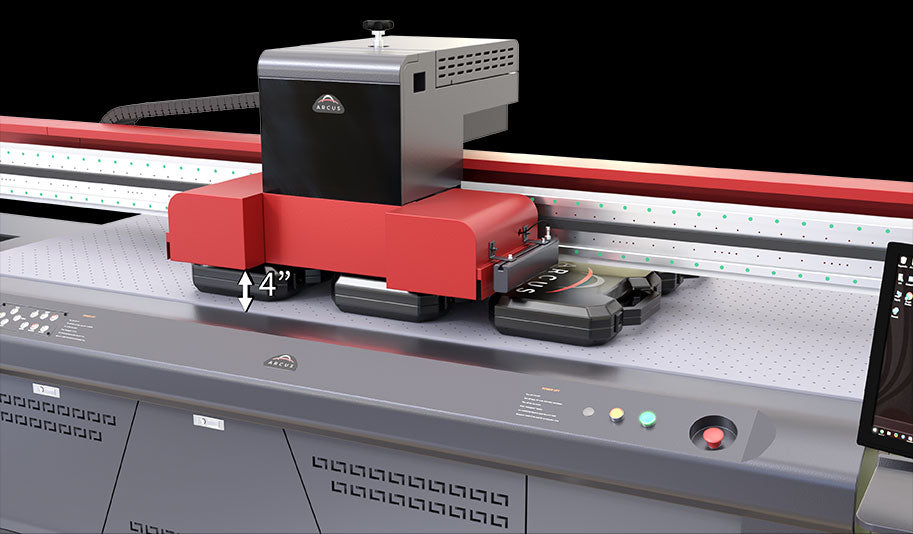

Up to 4” (100 mm), providing flexibility to handle unique rigid materials and thicker specialty substrates
Optional - Vision Scan Camera System:
Automatic artwork alignment for accurate print placement, supports variable artwork
Printable Area:
48” × 96”
Printing
Supported Printing Modes:
CMYK + White layering, multi-pass, multi-layer 3D/haptic printing
Printing Speed:
- Draft Mode: Up to 625 sq ft/hr
- Production Mode: 500 sq ft/hr
- High-Quality Mode: 390 sq ft/hr
Resolution:
Up to 720 × 2400 dpi (variable 720 × 1200 / 720 × 1800 / 720 × 2400 dpi, 4-8 passes)
Anti-Static Control:
Integrated anti-static bar prevents ink deflection.
Supported Media
Substrate Types:
Rigid and flexible substrates, including glass, wood, acrylic, PVC, metal, foamboard, and UV-compatible films
Media Control:
- Multi-zoned vacuum table with four independent zones
- Fixed bed height for unlimited substrate weight capacity
File Format Support:
TIFF, JPEG, PNG, PDF, and EPS
Color Configuration:
CMYK + White
Build & Hardware
Industrial Guide Rails:
Precision servo-driven linear rails with magnetic X-axis drive
Print Platform:
48” × 96” flatbed with vacuum hold-down and robust steel machine platform
Motion System
X-Axis:
Magnetic linear drive system for quiet, precise high-speed carriage movement
Y-Axis:
Servo-driven gantry with lead screw system for accuracy
Z-Axis:
Gantry worm/lead screw drive system with auto clearance sensor
Ink System
White Ink Recirculation:
Continuous recirculation and stirring prevent pigment settling
Ink Level and Low Ink Warning System:
Bulk tank monitoring with low-ink alarms
Subtanks on Head Carriage:
Provides continuous ink feed directly above the heads
Curing System
UV LED Lamps:
Integrated, long-life LED curing system
Cooling:
Onboard integrated liquid chiller for precise lamp temperature control
Curing Control:
Adjustable lamp power for flexible or rigid media and ink height building
Air Management
Air Fume Extraction:
External connection supported
Vacuum Pumps:
Twin onboard pumps powering four vacuum zones, concealed and low-decibel
Software & Compatibility
RIP Software:
Arcus RIP UV (included) supports Ergosoft, Flexi, and Onyx
Color Control:
ICC color management with adjustable curves and density
Machine Control Software:
ArcusLink for remote monitoring, printer control, and diagnostics
Dimensions & Power
Printer Dimensions:
4230 × 2200 × 1420 mm (166.5” × 86.6” × 55.9”)
Printer Crated Dimensions:
4410 × 2300 × 1750 mm (173.6” × 90.6” × 68.9”)
Printer Weight:
900 kg. (1,984 lbs.)
Printer Crated Weight:
1,250 kg. (2,755 lbs.)
Operating Voltage:
220V, single-phase
Power Consumption:
10 kW
Operating Environment
Temperature:
20-30°C (68-86°F)
Humidity:
40%-60%
Safety Features
Carriage Collision Stop Sensors:
Side and bottom sensors prevent head strikes
Automatic Substrate Clearance Sensing:
Prevents crashes and optimizes head height
Emergency Stop Button:
Immediate machine shutdown for operator safety
