Limitless Surfaces. Limitless Possibilities
Print Profitable Hard Goods, Awards & Signage

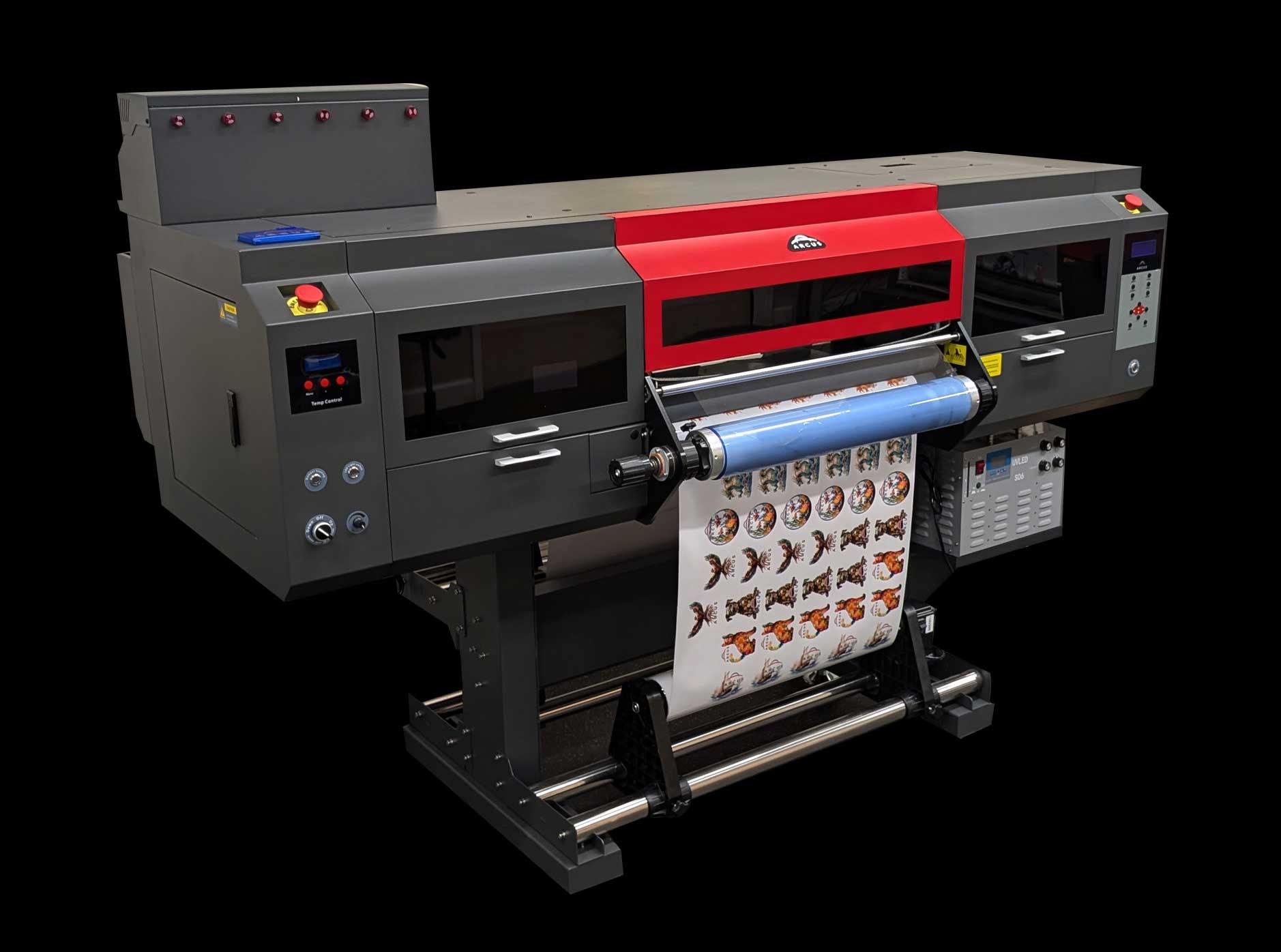

The Monarch 24 UVDTF printer features three Epson I3200 print heads and the reliability and versatility to print on a wide range of materials, such as plastic, glass, metal, wood, and more. The product requires no weeding and produces durable, water-resistant, and scratch-resistant decals that can be applied to non-flat surfaces with a simple pressure application.
The Monarch printer's production build quality ensures durability and performance. It also has a low imprint cost per print, saving you money and time while producing high-quality products.
High-Speed, High-Resolution, Precision Printing
UP TO
70 sq. ft/hr
SPEED
UP TO
2400
DPI RESOLUTION
Key Features
Print On a Wide Range of Materials
The Monarch 24 allows you to create high-quality, durable transfers for plastic, glass, metal, wood, and more. Get ready to expand your ability to serve multiple markets with ease.
No Weeding Required
The Monarch 24 prints ready-to-apply decals that require no weeding, streamlining your production process and saving valuable time.
Pressure-Activated Application
The UVDTF prints from the Monarch 24 adhere smoothly to non-flat, curved, and textured surfaces using simple pressure. No heat press or complex application methods required!
Durable, Scratch and Water-Resistant Prints
Create vibrant, scratch-resistant, and water-resistant decals that stand up to real-world handling. Ideal for hard goods, awards, promotional products, and signage!
High-Speed, High-Resolution Printing
Achieve impressive speeds up to 75 sq. ft/hr at production quality, while maintaining sharp detail and vibrant color with resolutions up to 2400 dpi.
One Machine. Every Step
Print, cure, and laminate in one seamless process, our integrated lamination roller eliminates the need for extra equipment, making production faster, cleaner, and more efficient.
Included With Your Monarch 24
CADLink Digital Factory Direct to Film RIP Software
Training and Customer Support
1 Year Warranty
All-in-one Production PC
SPECIFICATIONS
General
Printer Type:
UV DTF Printer
Model:
Monarch 24 UVDTF
Print Head Type:
Epson I3200
Number of Print Heads:
3
Ink Type:
UV
Ink Colors:
CMYK, White, Varnish
Ink Supply:
Main Supply Tank with White Stirring and Recirculation
Ink Capacity:
1500 mL/Bottle
Supported Media
Max Media Width:
600mm / 24 inches
Media Type:
UVDTF A & B Roll
Media Take-up:
Power Rewind with Motor Controlled Lamination Roller
Media Unwind:
Auto Tensioning with Power Unwind
Screen Display:
LED
Data Interface:
1000M LAN
Power
Printer Voltage:
AC 110V
Printer Power Amperage:
18A
Software & Compatibility
RIP Software:
CADlink Digital Factory / ArcusLink
Supported OS:
Windows 8 / 10 / 11
Machine Control Software:
ArcusLink (remote diagnostics and service)
Operating Environment
Temperature:
15℃–30℃ (60°F–90°F)
Humidity:
40%–60%
Print Speed
6PASS (Production Mode):
75 sq. ft/hr
8PASS (High Quality Mode):
43 sq. ft/hr

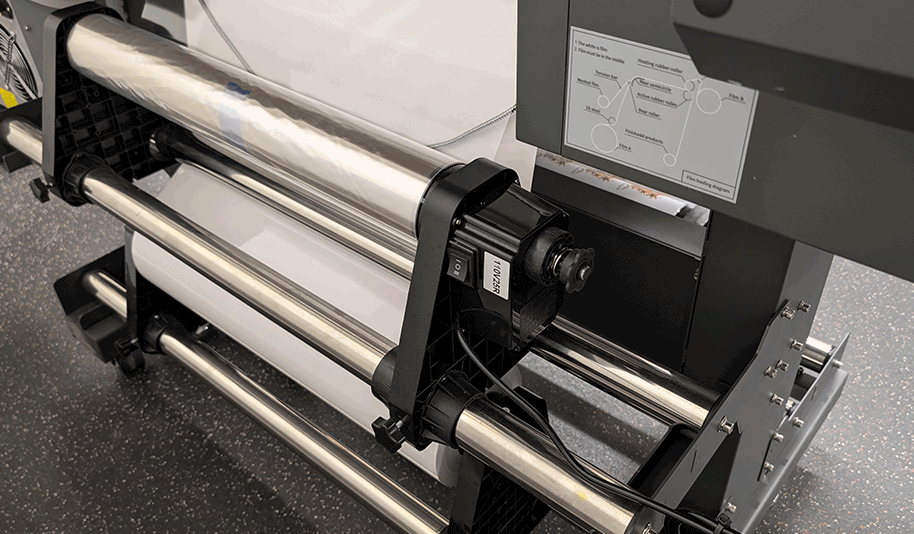

Lamination Roller
A pressure-controlled and heat-controlled
laminating system built into the printer
