Try Out the SQD 1802
Smart, Stable, and Fast Roll-to-Roll Sublimation Printing

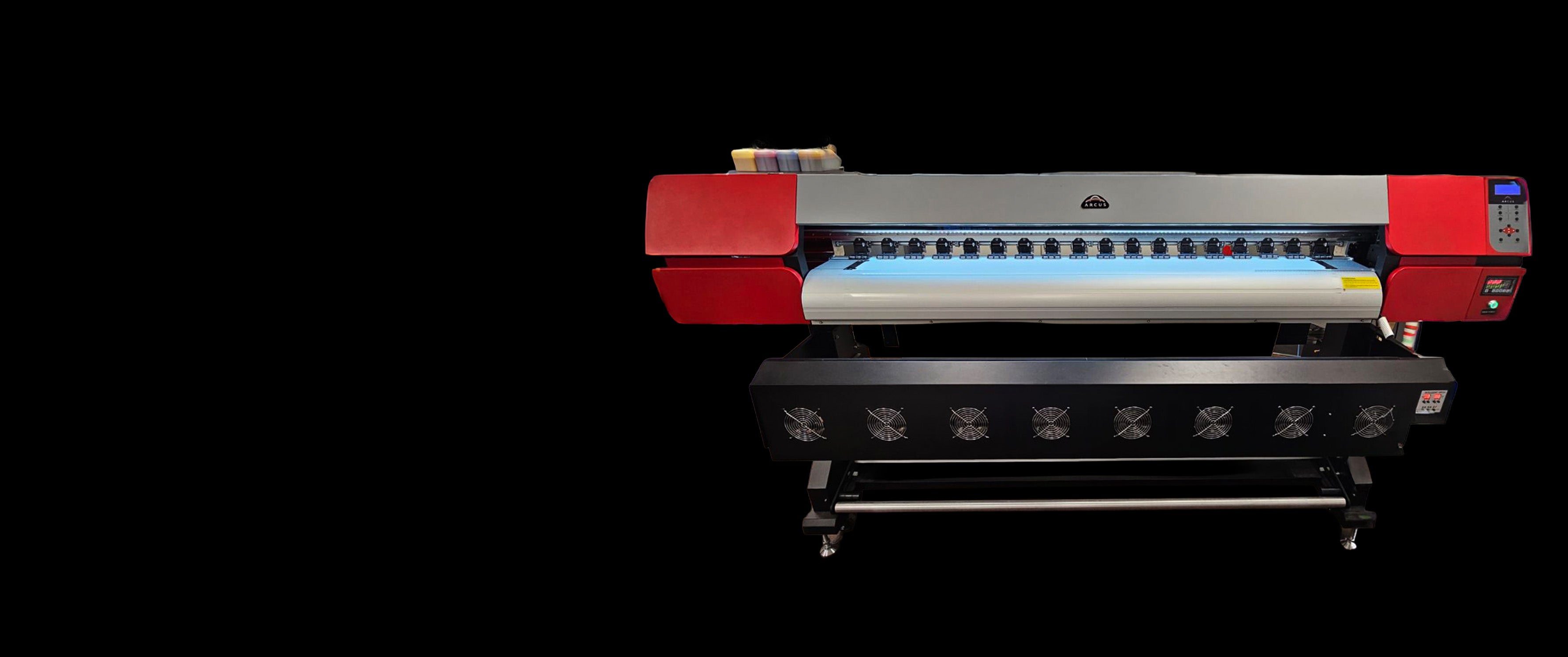

The Arcus SQD 1802 roll-to-roll dye sublimation printer is the ideal solution for a wide variety of sublimation applications —
from apparel and promotional items to banners and signage.
With a 72" maximum print width and speeds up to 807 sq.ft/hr, the SQD 1802 is built to handle demanding production requirements with consistent, high-quality output.
Designed for reduced maintenance and maximum uptime, the SQD 1802 features a rugged heavy-duty steel frame, precision aluminum components, and intelligent media handling for an incredibly stable, low-vibration printing experience.
High-Performance Sublimation Printing Made Simple
UP TO
807
SQFT/HR SPEED
UP TO
3600
DPI RESOLUTION
Key Features

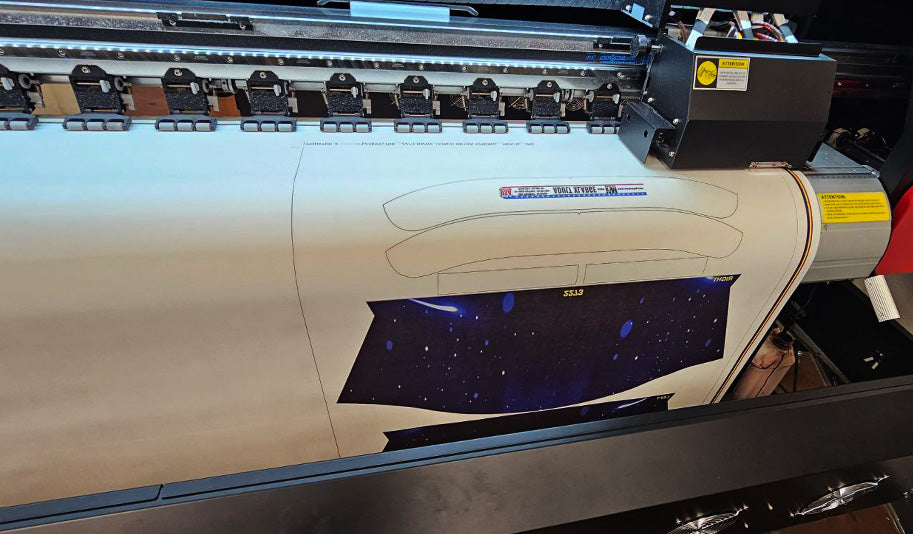

Dual-Head Power for Superior Speed
Featuring dual Epson I3200 printheads, the SQD 1802 produces up to 50.44 linear yards per hour, translating to 50+ shirts per hour in typical production layouts.

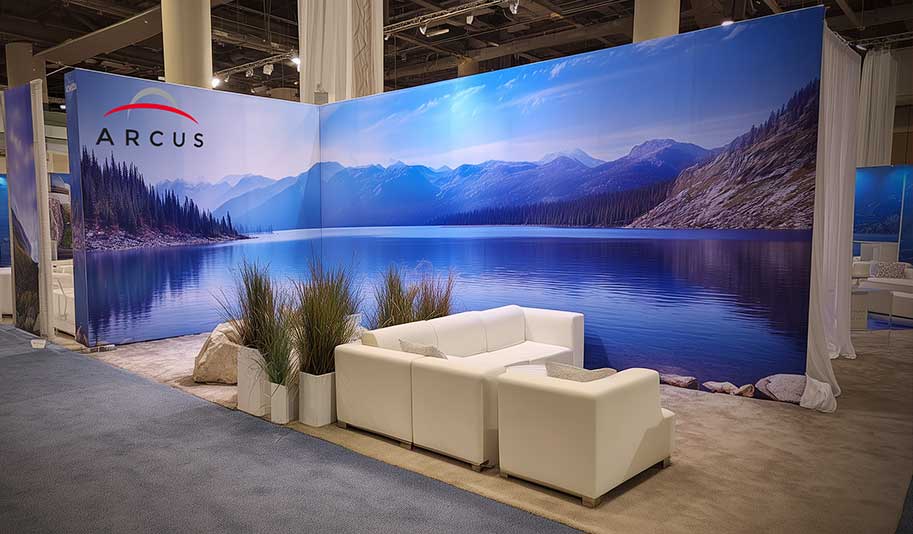

Wide-Format 72" Printing
Handle larger sublimation projects with ease — the SQD 1802 accommodates media up to 1800mm (70.8") wide, perfect for apparel, banners, soft signage, and more.
Intelligent Media Handling
Dual-powered wind/unwind systems with intelligent servo tension control ensure precise media alignment, reduce banding, and maintain consistent print quality throughout long production runs.

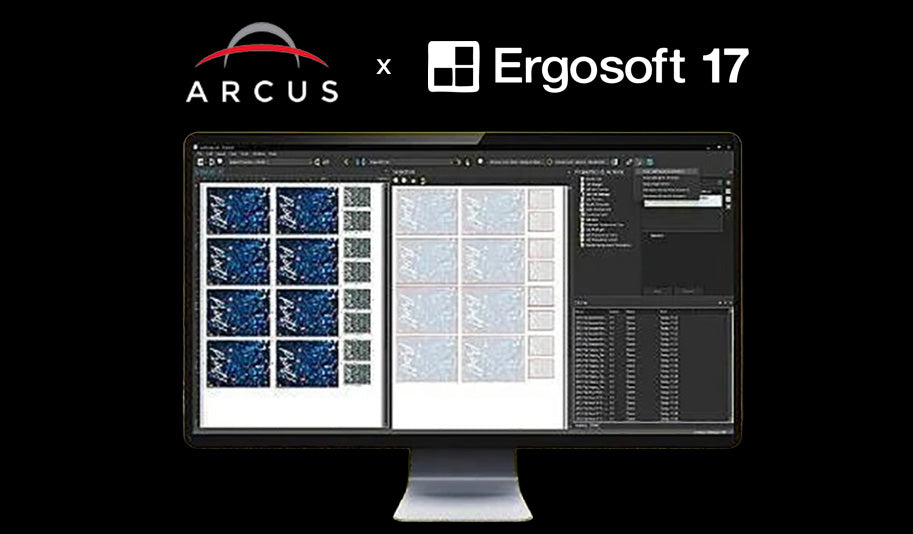

RIP Software
Includes Ergosoft Production RIP software for precision color management, layout control, and workflow optimization - a $3,300 value.
Integrated Heating and External Drying
Includes an integrated fan-assisted dryer for fast, thorough ink curing - enabling continuous high-volume production.
Elite Color Performance for Sports Apparel Production
Produces rich, saturated color and crisp detail across every run. It’s trusted for jerseys and uniforms where color accuracy, consistency, and durability matter.
Included With Your SQD 1802
Ergosoft Production RIP Software
Training and Customer Support
1 Year Warranty
SPECIFICATIONS
General
Printer Type:
Roll-to-Roll Dye Sublimation Printer
Model:
Arcus SQD 1802
Print Head Type:
Dual Epson I3200
Ink Type:
Aqueous / Pigment / Dye
Ink Colors:
CMYK, White, Varnish
Ink Supply System:
Main Supply Tank + Secondary Sub Tank
Ink Capacity:
1000mL Per Color
Maximum Media Width:
1800mm (70.8 inches)
Media Type:
Sublimation Paper
Media Take-Up:
Intelligent Dual-Power Wind/Unwind
Supported Media Weight:
50kg (110 lbs.)
Drying System
Dryer Power Consumption:
4000W
Dryer Amperage:
18.2A (220V) / 36.4A (110V)
Printing
Print Resolutions:
360 / 600 / 720 / 1200 / 1800 / 3600 dpi (10 Modes)
Print Method:
Variable DOD
Print Speed:
- 2 Pass (Draft Mode): 807 sqft/hr
- 3 Pass (Standard Mode): 592 sqft/hr
- 4 Pass (Quality Mode): 484 sqft/hr
- 6 Pass (High Quality Mode): 323 sqft/hr
Build & Hardware
Head Carriage Height:
Adjustable 1.5mm – 3.5mm
Head Cleaning System:
Automatic Lift / Auto-Clean
Screen Display:
LED
In-Line Heater:
Pre-Print-Post IR Heating
External Drying:
Infrared + Fan
Software & Compatibility
RIP Software:
Ergosoft Production RIP / ArcusLink
Operating System Compatibility:
Windows 8 / 10 / 11
Data Interface:
1000M LAN
Dimensions & Power
Shipping Weight:
240kg (529 lbs.)
Machine Weight:
210kg (463 lbs.)
Printer Voltage:
AC220V / 110V, 50Hz / 60Hz
Printer Power Consumption:
1000W
Printer Amperage:
4.6A (220V) / 9.1A (110V)
Operating Environment
Temperature:
15°C–30°C (60°F–90°F)
Humidity:
40%–60%
Print Speed
6 Pass (High Quality):
323 sqft/hr
4 Pass (Quality):
484 sqft/hr
3 Pass (Standard):
592 sqft/hr
2 Pass (Draft):
807 sqft/hr
